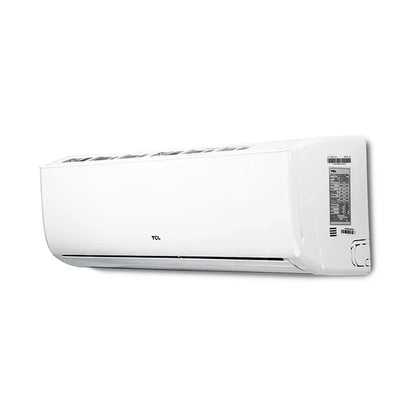

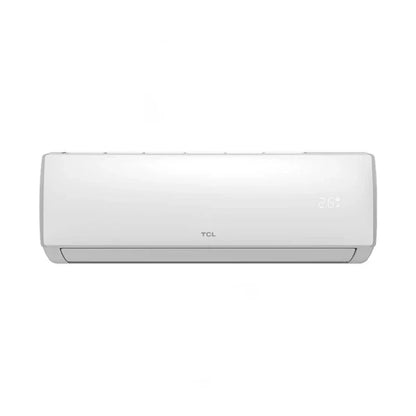

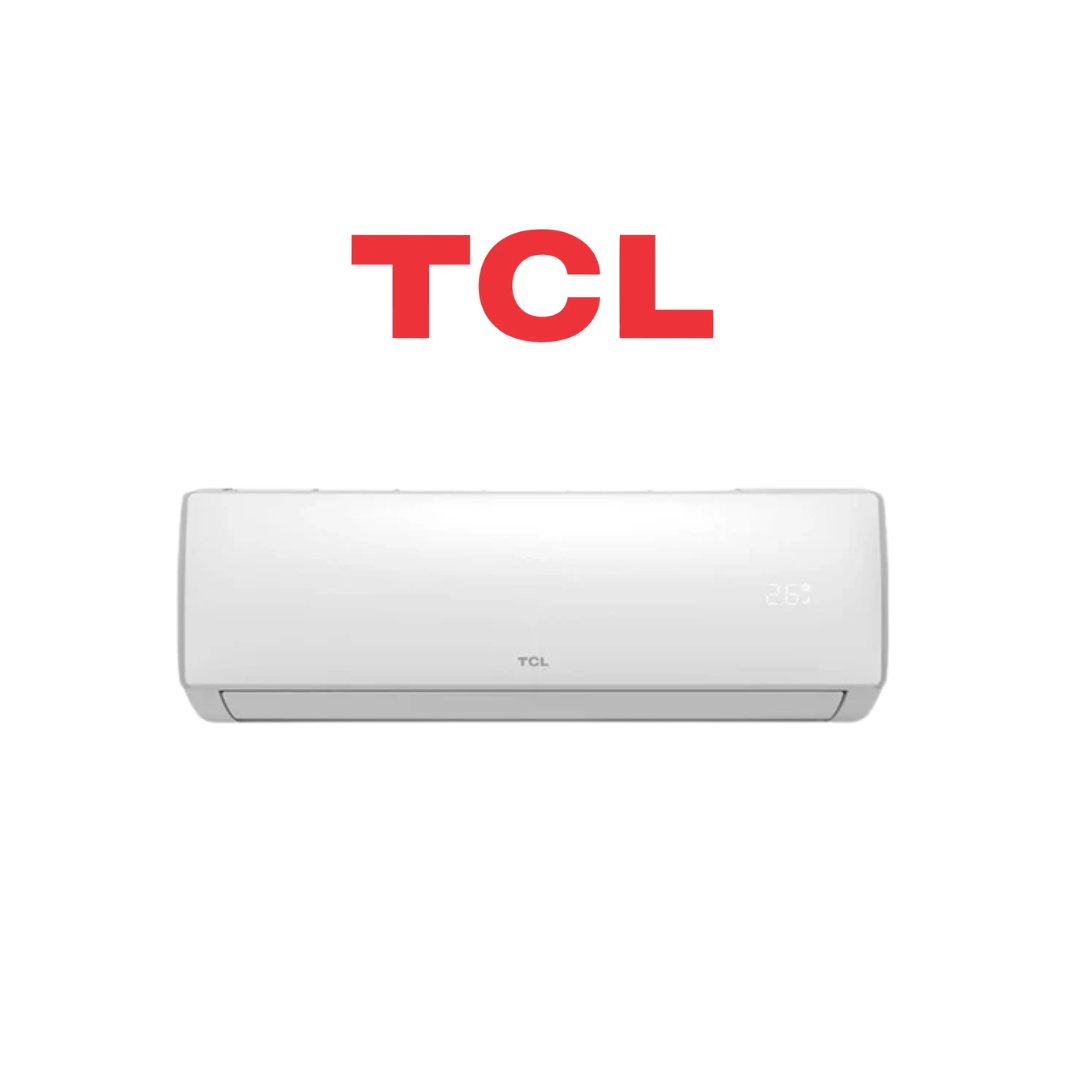

The TCL 9000 BTU Elite Series air conditioner is a high-efficiency, wall-mounted split system designed for both cooling and heating.It incorporates inverter technology and offers smart features for enhanced comfort and convenience. Below is a comprehensive overview of its specifications:
❄️ Cooling & Heating Performance
Cooling Capacity: 2,600 W (range: 940–3,320 W)
Heating Capacity: 2,610 W (range: 940–3,380 W)
Dehumidification Rate: 1.0 L/h
Air Flow: 420 m³/h
Operating Temperature Range:
Cooling: -15°C to 53°C
Heating: -20°C to 30°
⚡ Energy Efficiency
SEER (Cooling): 6.3 (A++)
SCOP (Heating): 4.0 (A+)
Annual Energy Consumption:
Cooling: 144 kWh
Heating: 604 kWh
Refrigerant: R32, 0.57 kg
🔌 Electrical Specifications
Power Supply: 220–240V / 50Hz / 1 Phase
Power Input:
Cooling: 750 W (range: 240–1,230 W)
Heating: 752 W (range: 240–1,280 W)
Current Input:
Cooling: 4.0 A (range: 1.2–6.3 A)
Heating: 4.1 A (range: 1.2–4.5 A)
📏 Dimensions & Weight
Indoor Unit:
Dimensions: 698 x 255 x 190 mm
Weight: 6.5 kg
Outdoor Unit:
Dimensions: 777 x 498 x 290 mm
Weight: 24 kg
🔧 Installation & Connectivity
Pipe Length: 5 meters (standard kit)
Max Pipe Length: 25 meters
Pipe Diameter:
Liquid Side: 6.35 mm (1/4")
Gas Side: 9.52 mm (3/8")
Wi-Fi Connectivity: Integrated, compatible with TCL Home App and Google Assistant
🧠 Smart Features
I-Feel Mode: Remote control temperature sensor for precise comfort
Sleep Mode: Adjusts temperature for optimal sleep conditions
24-Hour Timer: Programmable on/off scheduling
Auto Restart: Automatically resumes operation after power outages
Self-Diagnosis: Identifies and displays error codes for easy troubleshooting
Child Lock: Prevents unintended operation
Antibacterial Ionizer: Enhances air purification
🔊 Noise Levels
Indoor Unit Sound Pressure Level:
High: 40 dB(A)
Medium: 37 dB(A)
Low: 33 dB(A)
Mute: 25 dB(A)
Outdoor Unit Sound Pressure Level: 50 dB(A)
This model is suitable for rooms up to 26 m² and is designed to operate efficiently even in extreme temperatures, making it ideal for regions with hot summers and cold winters.Its smart features and energy efficiency ratings contribute to both comfort and cost savings.
